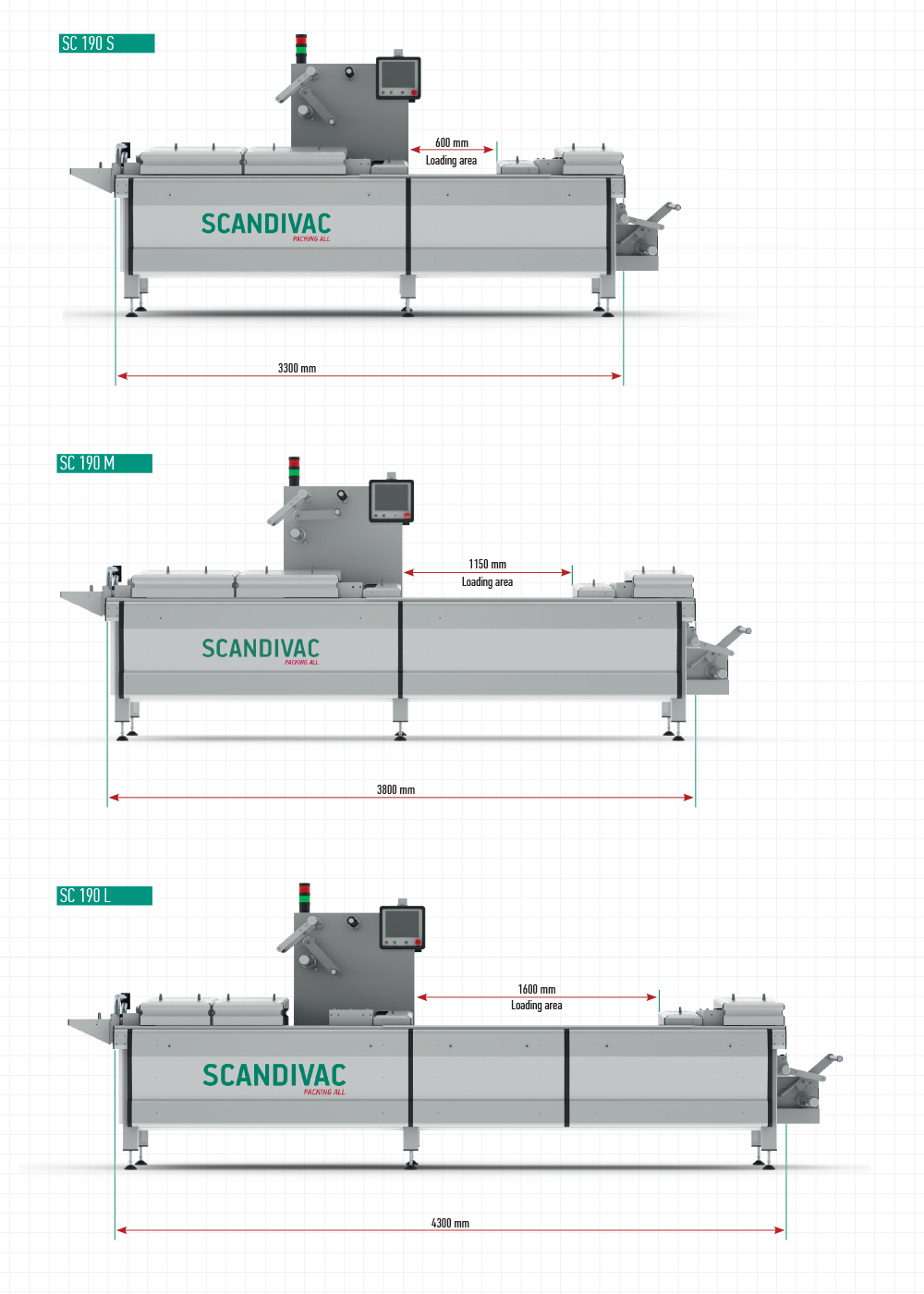

THERMOFORMER SC 190
Every single machine is manufactured according to the individual request; therefore it totally conforms with customers’ needs and wishes. By using tested technologies and electronical and pneumatic spare parts of European well known manufacturers, packaging machines provide safe, precise and stable work during many years of operation.
SERVICE DETAILS
SCANDIVAC SC 190 is usable for small amount of products packaging. With very compact dimensions, it is very useful in limited areas.
Solid stainless steel frame, for safe transportation and for strengthening of systems and mechanisms.
Freely variable distance between moulds, giving a possibility to use dies with different cut-off lengths.
Durable gripper chain guides casing.
4 or 6 point independent lifting mechanisms for dies with pneumatic drive and grease lubrication from a central location. Made from stainless steel and its moving elements are connected with bearings.
All SCANDIVAC machines are equipped with servo drive system for gripper chain.
Most of the spare parts are freely available on the market.
Only sealing of the package
Vacuum and sealing
Vacuum, gas and sealing
“Skin” packaging
Rotary knife assembly
Squeezing knife assembly
Roller shear cutting assembly – line cutting
Roller shear cutting assembly – strip cutting
Only with compressed air
With compressed air and vacuum
With pre-heating of film
With pre-heating of film and plugs
Posiforming
Cross cutting unit for flexible film – straight cut
Cross cutting unit for flexible film – zig-zag cut
Cross cutting unit for rigid film with round cornern
Colourful LCD touch screen
Control elements from SMC Pneumatics, Schneider Electric, Allen Bradley, Busch and others
